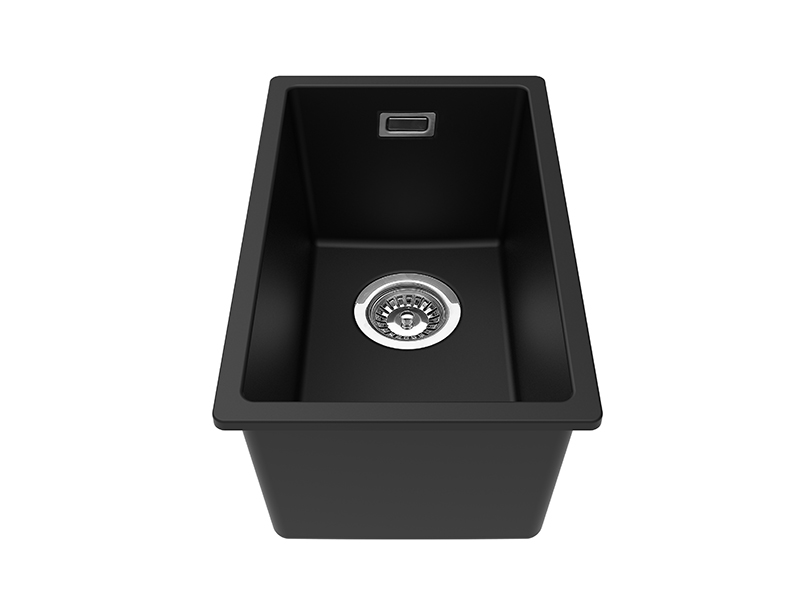

Measuring correctly for an Undermount Sink is one of the most important steps before ordering or fabricating a countertop. Unlike top-mount sinks, an undermount sink is installed beneath the countertop surface, which means the cabinet opening, countertop cutout, and sink dimensions must work together precisely. A small measuring error can lead to installation difficulties, misaligned reveals, or even the need to recut the countertop. This guide explains how to measure for an undermount sink in a clear and professional way, suitable for renovation projects and new installations.
Before taking a tape measure, it is essential to understand that undermount sink sizing involves three different elements.
The first is the base cabinet opening. This defines the maximum space available for the sink body, mounting hardware, and plumbing.
The second is the countertop cutout. This is the opening fabricated in stone or quartz based on the sink template and reveal style.
The third is the sink’s actual dimensions, including overall length and width, bowl depth, rim width, and corner radius.
Confusing these three measurements is a common reason for sink fit problems.
To measure accurately, prepare the following tools:
A tape measure with clear markings
A straight edge or level
Pen and paper to record data
A flashlight for checking cabinet interiors
Clear all items from inside the sink cabinet before measuring. If you are replacing an existing sink, identify whether it is undermount or top-mount, as this affects how the cutout was originally made.
Always begin with the cabinet, not the sink.
Measure the interior cabinet width by measuring from the inside left wall to the inside right wall at the top of the cabinet. Measure both the front and the back, as cabinets are not always perfectly square.
Measure the interior cabinet depth from the inside of the face frame to the back panel. If there are braces or panels at the rear, measure to the nearest obstruction.
Check the interior height and note any drawer rails, pull-out hardware, or shelf supports that may interfere with the sink or plumbing.
These measurements determine the maximum undermount sink size your cabinet can support.
The interior cabinet width limits the maximum sink length.
The interior cabinet depth limits the maximum sink width.
The available vertical space affects how deep the sink bowl can be, especially if a garbage disposal or large trap is used.
As a practical rule, allow clearance on each side of the sink for mounting clips or support rails. A sink that fits too tightly can be difficult to install and service.
Countertop thickness is important for undermount installations because it affects mounting strength and reveal appearance.
Measure the thickness from an exposed edge or from inside the cabinet at the cutout edge. Also check whether there is plywood or underlayment beneath the stone.
Measure the flat space behind the sink opening to ensure there is enough room for faucet holes, soap dispensers, or accessories. Limited deck space may influence sink positioning.
The reveal style determines how the countertop edge meets the sink opening.
A negative reveal means the countertop slightly overlaps the sink opening.
A zero reveal means the countertop edge aligns exactly with the sink opening.
A positive reveal means part of the sink rim is visible.
The reveal style directly affects the countertop cutout size. This decision should be made before final fabrication and shared clearly with the fabricator.
If you are replacing an existing undermount sink, additional checks are required.
Measure the visible opening from above to estimate the current cutout size.
Identify the reveal style by observing whether the rim is hidden, flush, or exposed.
Measure the existing sink depth from inside the bowl.
Reconfirm cabinet interior dimensions, even if the old sink fits.
If the new sink has a different corner radius or rim width, the countertop cutout may need adjustment.
Keeping measurements organized helps communication with suppliers and fabricators.
| Item | Measurement Location | Purpose |
|---|---|---|
| Cabinet interior width | Inside wall to inside wall | Determines maximum sink length |
| Cabinet interior depth | Face frame to back panel | Determines maximum sink width |
| Cabinet interior height | Floor to top rails | Checks plumbing clearance |
| Countertop thickness | Edge or underside | Affects mounting method |
| Existing cutout size | Top opening | Helps with replacement matching |
| Reveal type | Visual inspection | Defines cutout relationship |
Before confirming your sink choice, verify mounting clip space, drain position, and faucet alignment. Always compare your measurements with the sink’s technical drawing or template rather than relying only on nominal sink size.
When sourcing for a project, providing accurate cabinet and cutout information allows manufacturers to recommend suitable options more efficiently. For example, ROCKY supplies undermount sink solutions with clear specifications that help match cabinet sizes and countertop requirements. You can view our undermount sink range here: Undermount Sink.
Measuring for an undermount sink requires more than checking the sink’s listed size. By starting with the base cabinet opening, confirming countertop thickness and faucet space, and selecting the correct reveal style, you can ensure a proper fit and smooth installation. Careful measurement reduces fabrication risks and helps the sink perform as intended.
If you have questions about sizing, compatibility, or installation planning, you can contact ROCKY with your measurements. We provide guidance and support to help you choose the right undermount sink solution for your project.
